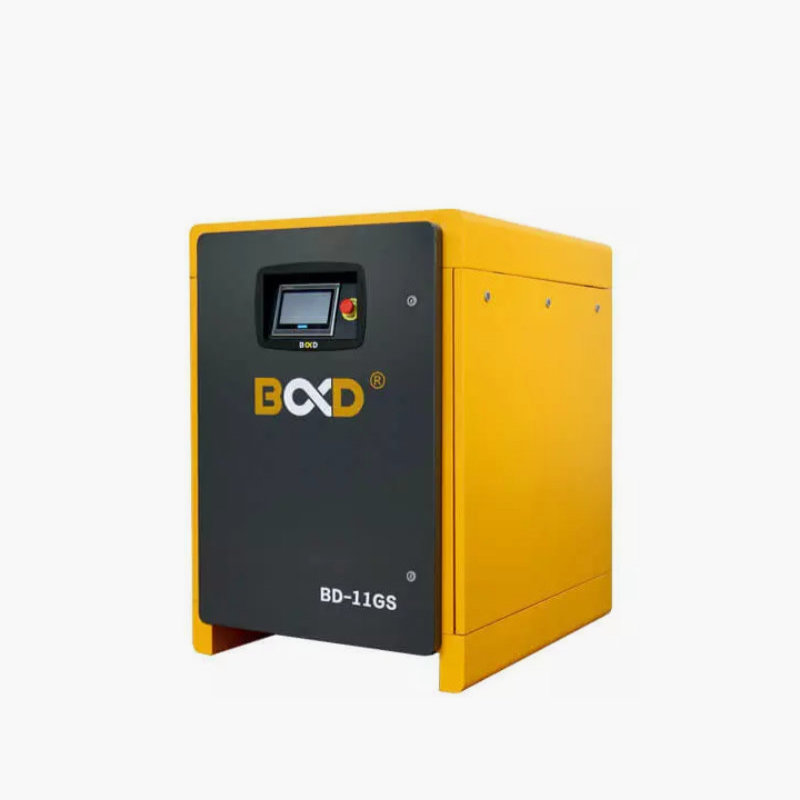

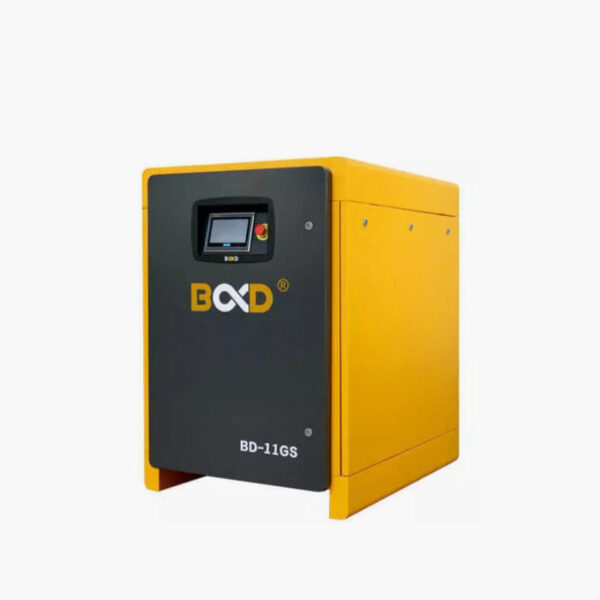

Baldor GS Series

Water-lubricated Twin-screw Compressor

Industries including food & beverages, electronic engineering, medicine, medical treatment, precision manufacturing and instrument industry.

  • “B&D Cloud"digital supervisory system provided
  • Ultra-low air-discharge temperature, vibration and noise
  • Food-grade stainless steel pipelines and shells with water treatment
  • Special designed water-lubricated bearings makes a true oil-free compressor
  • VSD Control with permanent magnet motor and inverter, energy-saving and environmental friendly
  • Highly effective and self-developed twin-screw airend with stability, reliability and lots of patent technologies

Description

Water-lubricated Twin-screw Compressor

Industries including food & beverages, electronic engineering, medicine, medical treatment, precision manufacturing and instrument industry.

  • “B&D Cloud"digital supervisory system provided
  • Ultra-low air-discharge temperature, vibration and noise
  • Food-grade stainless steel pipelines and shells with water treatment
  • Special designed water-lubricated bearings makes a true oil-free compressor
  • VSD Control with permanent magnet motor and inverter, energy-saving and environmental friendly
  • Highly effective and self-developed twin-screw airend with stability, reliability and lots of patent technologies

Specification

Model BD-07GSAV BD-11GSAV BD-15GSAV BD-22GSAV BD-37GSAV BD-45GSAV BD-55GSAV BD-37GSWV BD-45GSWV BD-55GSWV
Rated Pressure Range (Mpa) 0.5~1
FAD m/min 1.1 1.5 2.2 3.3 5.4 6.2 8.5 5.6 6.8 8.8
Discharge Temperature °C Ambient Temperature+25 Ambient Temperature+15
Motor Power °C 7.5 11 15 22 37 45 55 37 45 55
10 15 20 30 50 60 75 50 60 75
Dimensions (L*W*H)mm 950*1296.5*1226.5 1000*1300*1450 1300*1834*1800
Noise dB(A) 70 72 70 72 75 75 75 72 72 72
Net Weight kg 480 500 600 620 1200 1200 1240 1240 1300 1300
